In the world of professional woodworking and industrial metalworking, the saw blade is more than just a tool; it is a critical investment. High-quality carbide-tipped blades are favored for their precision, durability, and ability to stay sharp significantly longer than standard steel blades. However, even the most robust carbide tips eventually succumb to the friction and heat of continuous operation. When these tips chip, crack, or wear down to the nub, many professionals face a crossroads: do they discard the expensive blade or opt for retipping?
Retipping is the specialized process of removing worn or damaged carbide teeth and brazing new ones onto the existing steel plate. It is a cost-effective alternative to purchasing a brand-new blade, but it is not a process that can be repeated infinitely. Understanding the limits of this maintenance procedure is essential for maintaining safety and performance in your shop.
Understanding the balance between tool maintenance and plate fatigue is the key to maximizing your ROI on high-end industrial saw blades.
This guide explores the technical nuances of blade maintenance, answering the pivotal question: how many times can a carbide saw blade be retipped? We will delve into the factors that influence this frequency, the signs of plate fatigue, and the economic considerations that dictate when a blade has finally reached the end of its functional life.
Understanding the Anatomy of a Carbide Saw Blade
Before we can understand how many times a blade can be serviced, we must first understand what makes up a carbide saw blade. Unlike a standard high-speed steel (HSS) blade, a carbide blade is a composite tool. It consists of a high-strength steel body, often made from laser-cut chrome-vanadium steel, and small “teeth” or tips made from tungsten carbide.
The Steel Body (The Plate)
The steel body is the foundation of the blade. It must be perfectly flat, balanced, and capable of resisting the high centrifugal forces generated during spinning. High-end blades often feature expansion slots and vibration-dampening fillers that prevent the blade from warping under heat. The integrity of this plate is the primary factor in determining how many times the blade can be retipped.
The Carbide Tips
Tungsten carbide is an incredibly hard material, second only to diamond in industrial applications. These tips are not part of the original steel plate; they are separate components that are joined to the blade through a process called brazing. Because the carbide is so hard, it can withstand the abrasive nature of hardwoods, composites, and non-ferrous metals far better than steel.
The Braze Joint
The braze joint is the “glue” that holds the carbide to the steel. Usually, a silver-based solder is used because it has a lower melting point than the steel or the carbide. This allows the tips to be replaced without melting the entire blade. However, the repeated heating of this joint area during retipping is what eventually causes the steel to lose its temper or “memory.”

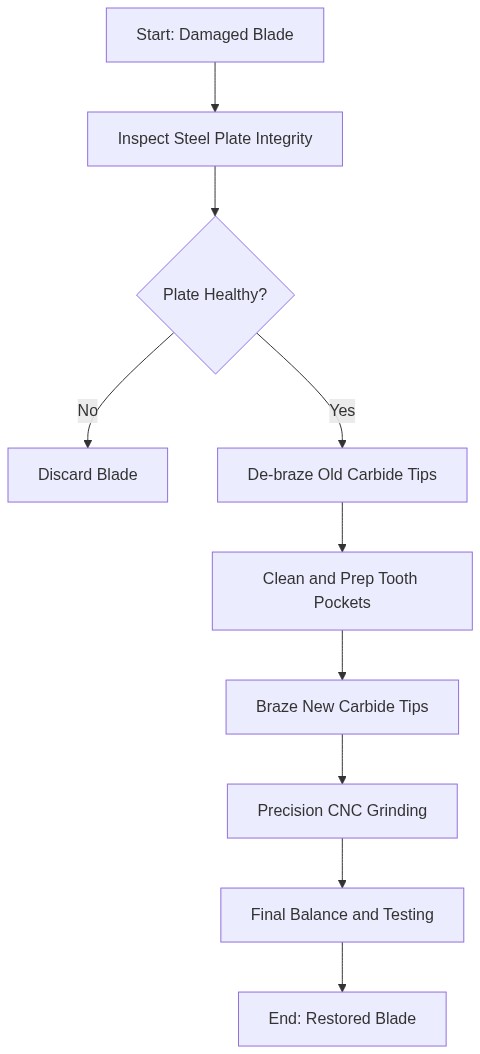

The Science Behind Saw Blade Retipping
Retipping is a delicate surgical procedure for industrial tools. It begins with the removal of the old, damaged carbide tips. This is typically done using an induction heater or a precision torch to melt the silver solder. Once the solder reaches its liquidus state, the old tip is popped off, and the “seat” or “pocket” on the steel plate is cleaned of any residual oxidation or old solder.
After the pocket is prepared, a new carbide tip is selected. This tip must match the original specifications of the blade in terms of width, height, and grade. A new piece of silver solder shim is placed between the carbide and the steel, and heat is applied again. The capillary action of the melting solder draws the carbide tight against the steel plate, creating a bond that can withstand thousands of pounds of pressure.
The final step is the grinding process. New carbide tips are “blanks,” meaning they do not have a finished edge. A CNC grinding machine uses diamond wheels to shape the top, face, and sides of each tooth to the exact angles required for the blade’s specific application (e.g., ATB, Flat Top, or Triple Chip Grind).
How Many Times Can a Carbide Saw Blade Be Retipped?
The definitive answer to how many times can a carbide saw blade be retipped typically ranges between 3 to 10 times, depending heavily on the quality of the original steel plate and the skill of the technician. While the carbide itself is replaced every time, the limiting factor is the “fatigue life” of the steel pockets where the teeth are seated.
For a standard, mid-range professional blade, you can safely expect 3 to 5 retips. High-end industrial blades, such as those used in primary timber milling or high-volume furniture manufacturing, are often built with thicker, higher-grade steel plates that can handle up to 10 retips. Each time the steel is heated to the 1,100°F–1,300°F range required for brazing, the molecular structure of the steel changes slightly.
Over time, repeated thermal cycles cause the steel in the tooth pocket to become brittle or lose its “spring.” If the steel becomes too soft, it won’t hold the carbide securely, leading to “thrown teeth,” which is a significant safety hazard. Conversely, if it becomes too brittle, the pocket may crack during the cooling process.
Signs Your Carbide Blade Needs Retipping vs. Sharpening
It is a common misconception that every dull blade needs new tips. Most of the time, a simple sharpening (grinding a few thousandths of an inch off the face and top of the existing carbide) is all that is required. However, there are specific scenarios where sharpening is no longer an option.
- Physical Damage to the Carbide: If you hit a nail or stone, the carbide will often shatter. If more than 10-15% of the tooth’s mass is missing, the tooth must be replaced.
- The “Nub” Stage: When the carbide is roughly the thickness of a credit card after multiple sharpenings, it can no longer withstand cutting forces and requires a full retip.
- Missing Teeth: A missing tooth creates an unbalanced condition. The pocket must be cleaned and a new tip brazed on to maintain geometry and safety.
| Condition | Recommended Action | Estimated Cost (%) |
|---|---|---|
| Dull edges, no chips | Standard Sharpening | 10-15% of New |
| 1-3 Chipped teeth | Partial Retipping | 20-30% of New |
| Carbide worn thin (Nub) | Full Retipping | 40-60% of New |
| Warped or cracked plate | Replacement | 100% |
Factors That Limit the Retipping Lifespan of a Blade
Several environmental and operational factors can shorten the 3-10 retip lifespan significantly:
- Gullet Erosion: Abrasive waste material can sand down the steel in the gullet. If the gullet becomes too thin, it leads to overheating and potential plate failure.
- Plate Run-Out (Warping): Severely warped plates cannot be saved. Retipping a warped plate is a waste of money, as the blade will never cut straight.
- Repeated Overheating: If a blade “blue-ups” (turns a bluish-purple color), the temper of the steel has been compromised and it is generally unsafe for retipping.
- Shoulder Fatigue: In high-impact applications, the shoulder behind the carbide tip can develop microscopic stress cracks, rendering the plate non-viable.
The Economic Benefits of Retipping Over Replacement
For a hobbyist with a $30 big-box store blade, retipping makes no sense. The cost of labor and materials for a professional retip would exceed the price of a new blade. However, for professionals using blades that cost $150, $500, or even $1,500, retipping is a financial necessity.
A full retip on a high-quality 10-inch industrial blade typically costs 40-60% of the price of a replacement. When you consider that a well-maintained plate can be retipped up to 10 times, the total cost of ownership drops dramatically. Instead of buying 10 new blades, you are essentially buying one high-quality plate and paying for maintenance, saving thousands of dollars over the tool’s lifecycle.
